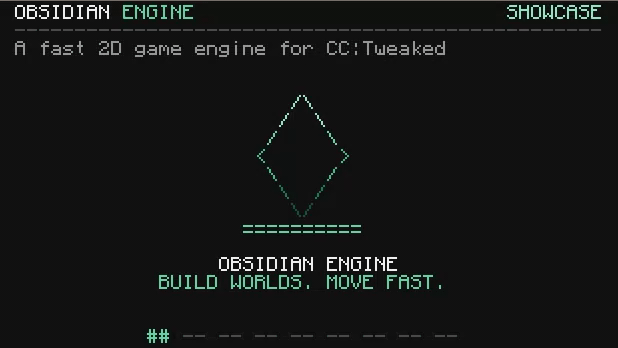

Obsidian Engine

Obsidian is a 2D game engine for CC: Tweaked. It pairs an Entity Component System with a retained renderer, so game logic stays decoupled from data while drawing is reduced to the cells that actually changed.

API reference and guides

Features

• ECS architecture: entities, components and systems, backed by a spatial grid for rect queries, triggers, raycasting and line-of-sight checks.
• Retained renderer: z-ordered layers with per-channel transparency, nested translation and clipping contexts, and dirty-region tracking so only changed rows reach the terminal.
• Colour beyond 16 slots: register logical RGB colours; a sticky palette mapper assigns them to hardware slots per frame and approximates the excess.
• Subpixels: a 2x3 virtual canvas compiled into CC mosaic characters.
• FLIMG images: a binary format that keeps RGB and subpixels intact instead of baking them into terminal cells.
• Scenes and tilemaps: multi-layer maps with collision, slopes and one-way platforms, plus static, dynamic and foreground render passes.
• Gameplay systems: physics, particles, tweens, timers, pathfinding, AI behaviour trees, audio, save/load and a document store.
• Multiplayer: a rednet wrapper with heartbeats, and a high-level server with rooms, middleware and an optional console.
• Developer friendly: LuaLS annotations throughout, generated API docs, and source, minified and compressed release bundles.

Installation

Fetch the installer and run it:

wget https://pyroxenium.github.io/Obsidian/install.lua

Run without arguments it opens a graphical installer; pass a variant to skip straight to the download:

install minified

Variant	Result	Notes
source	obsidian/ folder	Editable original sources
bundled	obsidian.lua	Readable single file
minified	obsidian.lua	Smaller, instant startup (default)
compressed	obsidian.lua	Smallest download, decompresses on load

Whichever you choose, the engine is loaded by name:

local Engine = require("obsidian")

Both layouts answer that call: a folder containing init.lua, or a single obsidian.lua next to your program.

Quick start

local Engine = require("obsidian")

local scene = Engine.scene.new()
scene.name = "Hello"

local player = scene:spawn()
scene:attach(player, "pos", Engine.math.vec2(10, 5))

scene.onDraw = function()
    Engine.buffer:drawText(2, 2, "Hello Obsidian", "0", "f")
end

Engine.setScene(scene)
Engine.start()

See guides/engine_quickstart.md for a longer walkthrough and guides/ecs_guide.md for the ECS model.

Project structure

• src/ — the engine. Installed as obsidian.
  • init.lua — entry point and module loader.
  • engine.lua — subsystem wiring, main loop, scene transitions.
  • core/ — one file per subsystem (buffer, scene, ecs, ui/, …).
  • flimg.lua — the FLIMG image codec, shared with Basalt.
• guides/ — prose documentation.
• examples/ — runnable sample programs.
• tools/ — development tooling, not shipped with the engine.
• bundle/ — generated single-file releases.
• install.lua — the web installer.
• manifest.txt — source file list the installer reads; regenerated by CI.

Asset formats

Extension	Contents	Loaded with
.obs	Multi-frame sprite: character, foreground and background layers	Engine.loader.loadSprite
.oui	UI layout definitions	Engine.loader.loadUI / scene:loadUI
.pe	Particle emitter configuration	Engine.loader.loadEmitter
.flimg	Binary image with RGB colours and subpixels	Engine.loader.loadImage

.obs, .oui and .pe are serialised Lua tables; see filetypes.md for their structure and validation rules, and src/FLIMG.md for the FLIMG binary layout.

Rendering pipeline

Each frame runs a fixed sequence:

1. Clear
2. Static pass (tilemap and static elements, cached between frames)
3. Query pass (ECS)
4. Sort pass (z-index)
5. Entity pass
6. UI pass
7. Present (compose layers, blit changed rows)

Static content is redrawn only when the camera moves or the scene is marked dirty; otherwise the rows entities touched last frame are restored from cache.

Tooling

Run from the repository root. All of these work under plain Lua as well as inside CraftOS-PC.

lua tools/docgen.lua --check

lua tools/bundle-host.lua --compress

• docgen.lua — generates the API reference from the source annotations. Without arguments it writes to docs/; --check validates only.
• bundle.lua / bundle-host.lua — build a single-file release. Default is minified; --no-minify keeps readable source, --compress adds compression.
• smoketest.lua — loads the engine and verifies every subsystem came up. Run it from a computer that has Obsidian installed as obsidian.
• minify.lua — the Lua minifier used by the bundler.

License

This project is licensed under the MIT License.
