Make xy.pyplot gallery-compatible with Matplotlib 3.11

[Alek99]

Summary

Makes xy.pyplot a gallery-compatible drop-in surface for Matplotlib 3.11 while preserving the dependency-free, performance-oriented native renderer.

• Adds native, compat, and lazy auto modes plus plt.set_mode(), plt.get_mode(), and XY_PYPLOT_MODE.
• Adds the public module://xy.backends.backend_xy Matplotlib backend.
• Uses genuine Matplotlib Figure/Axes/Artist semantics in compat mode and an XY display-list renderer for browser, SVG, and raster output.
• Covers paths, clipping, collections, images, text/mathtext, hatches, path effects, meshes, Gouraud triangles, toolkits, units, 3-D, widgets, events, and animations.
• Adds a live browser canvas with pointer/keyboard/scroll/resize/close events, navigation, picking, timers, widgets, and deterministic animation tests.
• Vendors and hashes the supplied Matplotlib gallery as a permanent executable compatibility contract.

Matplotlib supplies frontend semantics in compat mode, but accepted charts are rendered by XY: gallery acceptance rejects Agg or any other renderer fallback.

Final gallery acceptance

Measure	Result
Supplied sources represented	507/507
pyplot-eligible sources accepted	485/485
Standard profile	472/472
Extended profile	13/13
Non-pyplot backend/font/GUI examples classified	22/22
Figure/capture parity	485/485
Dimension policy	485/485
Exact dimensions	481/485
Semantic gate	485/485
Tolerant visual gate	485/485
Browser/interaction behavior	76/76
Fallbacks / waivers / ratchet failures	0 / 0 / 0

Exact pixels are not required. The four non-exact dimensions (skewt, figure_size_units, horizontal_barchart_distribution, and colormap_reference) pass the documented tolerant dimension policy. All other structural, semantic, visual, and behavioral gates pass without waivers.

Exact-head CI and artifact audit

• Audited head: 99ee677ad05a506b9a4dd11385c708d411b6f43e
• CI: all green in run 30669491110, including all eight standard gallery shards, the Matplotlib reference job, the 13/13 extended profile, the full Rust/Python/JS suite, Python 3.11, source and wheel packaging, and browser conformance.
• Binder, Docs, and CodSpeed are also green.
• Every gallery report records the exact clean head and CPython 3.12.3, including every per-engine result.
• Cross-version source-provenance and acceptance validation also passes under CPython 3.14.

Standard profile

All eight uploaded artifacts were downloaded and independently audited. Their 472 unique example paths exactly equal the standard manifest; all 944 Matplotlib/XY engine runs completed. Execution, capture, dimensions, semantics, and visuals are 472/472; behavior is 71/71; exact dimensions are 468/472; and fallback, waiver, ratchet, comparison, failure-artifact, and JUnit counts are all zero.

Shard	Artifact	ZIP SHA-256
0	8808280300	7bec905ba69b99e0cfb79808006b2884fa142c466fa66d8a60b1079306718aa3
1	8808277759	68d5ec461e1b12be193e178b764032e526eecfce431236607129b8e81dcd0092
2	8808275136	b03a321b23923c59173dc090a2c00dacddf2f2a6701ab07c0bd1cffb3ff9a459
3	8808267036	de6885e8e8a921dc3059f0cff4784e2c8c4267ab37a237ab9424b644252a94e4
4	8808267872	4ebb39c595b7aff17201d120c88007232388b69f42233e8b1c835a272f1e4e34
5	8808274261	abbe59245588ca5ec010c21d96c832f5eb5e71e1e04dc53fe93d7c8e4deeca4a
6	8808279720	81f3c2b3a36fd7482fc9bc307f74193a0b7d2913cbaf9adc56149d799faf6f7b
7	8808274829	1568c97a5d2dcbdbd0d94b835356adb0510eb638043fa55d009814a5d12e393c

Extended profile

• Artifact: 8808274446
• ZIP SHA-256: a85c5c585c7a26958740c6af8caacfd4f730a161c98171b992ebfbbd75574d4a
• report.json SHA-256: 2bb1d2d01705410d8589b504693d0b30fd7161c026ad7a65b4b4bd90b550880f
• junit.xml SHA-256: 5975336704887173dd9128f81f1d9d0dafb8aa64630ef24efbb981c830b3946b
• Result: 13/13 execution, capture, dimensions, semantics, and visuals; 5/5 behavior; zero fallback, waiver, ratchet, performance-warning, or JUnit failures.

Executable contract and CI

The harness:

• Records both supplied archive hashes and all 507 source hashes.
• Proves notebook code-cell AST equivalence without vendoring duplicate notebooks.
• Rewrites only the pyplot binding using exact token-span edits, with stable hashes across supported Python micro versions.
• Executes transformed sources as real temporary files.
• Records interpreter, source, manifest, implementation, figure, capture, dimension, semantic, visual, behavior, warning, performance, and fallback provenance.
• Rejects stale cross-interpreter resume data, any renderer fallback, any waiver, or a passing-case regression.
• Runs the standard profile in eight CI shards and provisions TeX, fonts, GTK, Xvfb, optional dependencies, clean argv, and multiprocessing support for the extended profile.

The browser probes use a bounded Playwright/Chromium driver, fail closed when CI requires a browser, preserve semantic diagnostics, and avoid Linux Chromium first-profile hangs.

Evidence and tracked root causes

Browse the permanent comparison screenshots.

Example	Matplotlib	xy.pyplot

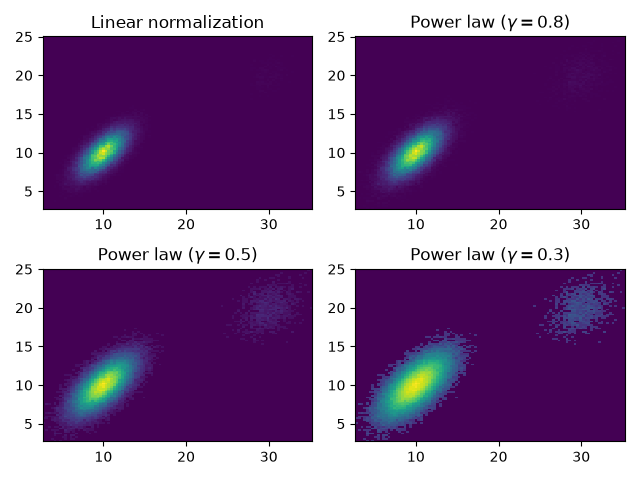

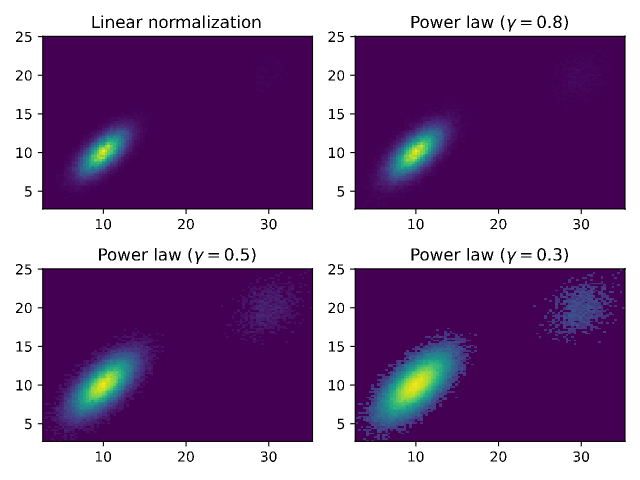

Mesh normalization

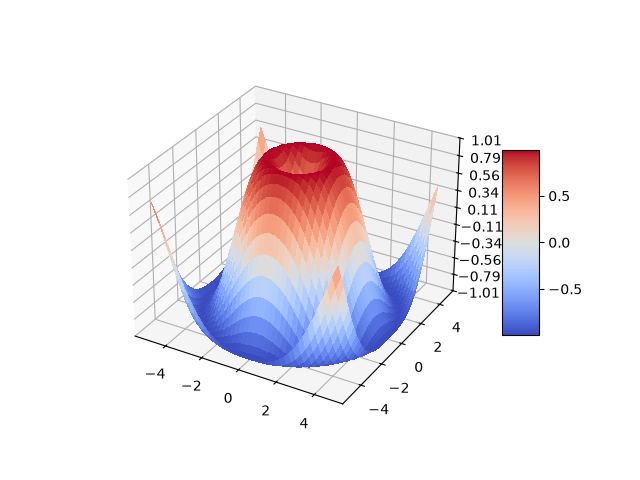

3-D surface

Root-cause issues include complete upstream Matplotlib sources, comparison screenshots, affected-example counts, acceptance tests, and the pyplot label:

• [pyplot] Complete the live browser status, cursor, navigation, and event bridge #414 — live browser status/cursor/navigation/event bridge
• [pyplot] Eliminate QuadMesh seams in pcolormesh/hist2d output #415 — QuadMesh seams in pcolormesh/hist2d
• [pyplot] Make gallery behavior gates fail closed under callback errors and Matplotlib version skew #416 — fail-closed behavior gates and version-skew handling

Fixes #354
Fixes #409
Fixes #414
Fixes #415
Fixes #416

Revalidates #410 and #411.

[greptile-apps]

Too many files changed for review. (601 files found, 100 file limit)

[coderabbitai]

Important

Review skipped

Draft detected.

Please check the settings in the CodeRabbit UI or the .coderabbit.yaml file in this repository. To trigger a single review, invoke the @coderabbitai review command.

⚙️ Run configuration

Configuration used: defaults

Review profile: CHILL

Plan: Pro Plus

Run ID: b048abfc-2c62-457b-9a16-8d675cc6f4c2

You can disable this status message by setting the reviews.review_status to false in the CodeRabbit configuration file.

Use the checkbox below for a quick retry:

• 🔍 Trigger review

---

_{Comment @coderabbitai help to get the list of available commands.}

[codspeed-hq]

Merging this PR will not alter performance

✅ 109 untouched benchmarks
⏩ 2 skipped benchmarks¹

---

_{Comparing agent/pyplot-gallery-compat (99ee677) with main (a2f2976)}

Footnotes

1. 2 benchmarks were skipped, so the baseline results were used instead. If they were deleted from the codebase, click here and archive them to remove them from the performance reports. ↩

[Alek99]

Final exact-head acceptance audit is complete for 99ee677ad05a506b9a4dd11385c708d411b6f43e.

• CI run 30669491110 is fully green, including all eight standard gallery shards, the 13/13 extended profile, the Matplotlib reference job, full Rust/Python/JS and Python 3.11 suites, browser conformance, sdists, and Windows/Linux wheels. Binder, Docs, and CodSpeed are green too.
• 507/507 supplied sources are represented: 485/485 pyplot-eligible examples accepted (472 standard + 13 extended), with the remaining 22/22 explicitly classified.
• Figure/capture, dimension-policy, semantic, and tolerant-visual gates are 485/485; 481/485 dimensions are exact.
• Interaction behavior is 76/76.
• Fallbacks, waivers, ratchet failures, comparison failures, and JUnit failures are all zero.
• Every exact-head report records clean commit provenance and CPython 3.12.3 at both report and engine levels; source/provenance validation also passes cross-version under CPython 3.14.
• The independently downloaded extended artifact 8808274446 has ZIP SHA-256 a85c5c585c7a26958740c6af8caacfd4f730a161c98171b992ebfbbd75574d4a and report SHA-256 2bb1d2d01705410d8589b504693d0b30fd7161c026ad7a65b4b4bd90b550880f.

The PR description now contains the complete standard shard artifact IDs/digests and final acceptance evidence. The PR remains draft for maintainer review.
